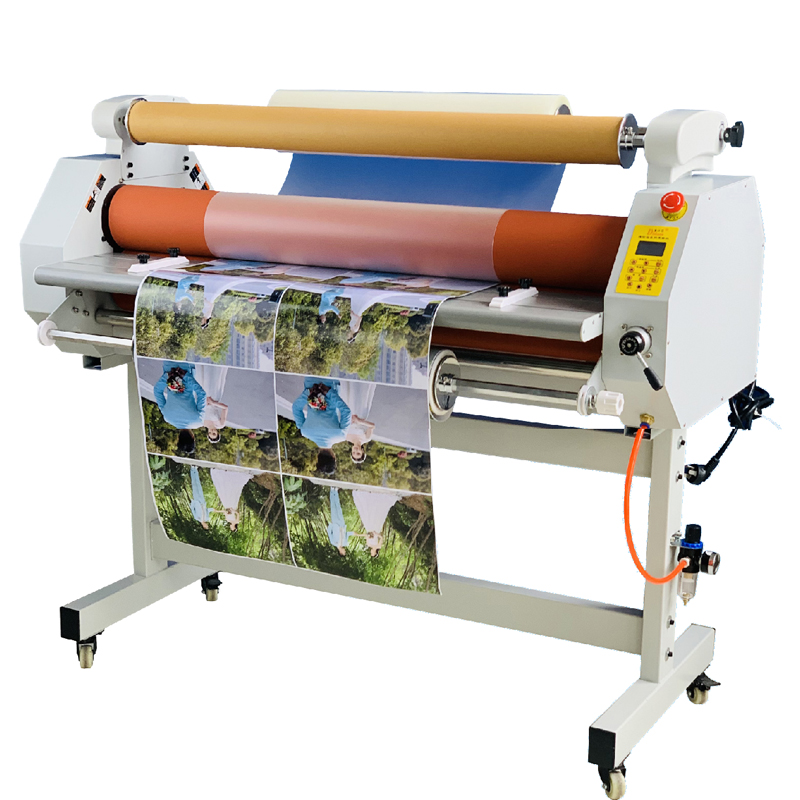

Introducing Colordowell’s WDDSG-880B Crystal Fil Pneumatic Roll Laminator. A powerhouse in the sphere of hot and cold roll laminators, the WDDSG-880B shines in its application and versatile performance. This roll laminator comes with a pneumatic elevation and pressure system that promises powerful pressure application. The convenience factor is further amplified by the speedy operation and non-contact infrared temperature measurement. The distinct temperature control system for the upper and lower rubber roller ensures precise management of the lamination process. Our product features a remarkable LCD display, touch-enabled for easier operation. The in-built 300W DC motor gear reducer underlines the machine's strength and durability, ensuring an efficient and high torque performance throughout its service life. Designed to deliver dual functionality, it can effectively handle both single and double heat operations along with low-temperature cold lamination. The professional-grade crystal film and high-temperature hot casting machine makes it the first choice for high-quality lamination. Unlike any other models, the WDDSG-880B has an automatic jie membrane and automatic winding for finished products. The rubber rollers are designed with imported material and high temperature resistant silicone rubber for superior performance. The laminator boasts a maximum laminating width of 850mm, laminating speed of 0-5m/min, fantastic heating temperature of 160℃, roller diameter of 130mm, and power supply of AC 100V; 110V; 220-240V,50/60Hz. The heating power stands at 3800W, Motor Power at 300W and the machine weight is 120kg. When it comes to roll laminators, think Colordowell. Our commitment to quality and technological innovation makes our products go-to choices for businesses across the world. Experience the Colordowell difference today with our WDDSG-880B Crystal Film Pneumatic Roll Laminator.

1, pneumatic elevation, pneumatic pressure, pressure is big, fast and convenient operation.2, non-contact infrared temperature measurement, the upper and lower rubber roller independent temperature control system.3, LCD display, touch can.4, using the 300 w dc motor gear reducer, 3 send and service life of the moving party to work within the torque,5, single/double heat, low temperature cold.6, cold be automatically jie membrane, finished automatic winding.7, professional crystal film, decoration first choice for high temperature hot casting machine.8, rubber roller adopts imported material not viscose high temperature resistant silicone rubber.9, four rubber roller, belt traction type rubber roller

Max laminating width	850mm
Laminating Speed	0-5m/min
Max heating Temperature	160℃
Roller Diameter	130mm
Heating method	infrared heating by hot air
Power supply	AC 100V; 110V; 220-240V,50/60HZ
Heating Power	3800W
Motor Power	300W
Machine weight	120kg

---
